Technical coating systems for Chemistry & Industry
Solvent-free epoxy and/or epoxy novolac and/or vinylester systems for the gasproofing, waterproofing and protection of concrete and steel tanks, reservoirs, temporary retentions and structures in contact with all types of chemical liquids and gases, acids, bases, however aggressive.
Depending on the nature of the product in contact and the storage temperature, products recommended will be TECHNOPERL® or CHEMPERL® or GELCOAT SV102 or LP 100/512 or 812 or AR100MD4 and CLX or CHEMPERL®
As a general rule, on new or existing concrete substrates or on existing, corroded steel substrates, the recommended solutions will consist of multi-layer, glass-fiber-reinforced systems completed with a finishing coat determined by the nature of the gas/liquid/effluent stored and its maximum temperature of storage. On new steel or steel with a very good condition of surface after preparation, a single-layer coating, applied after blasting and priming, may be sufficient.
In any case, MAX PERLES will provide the appropriate technical specification on request,
taking into account the data supplied on the nature and temperature of the content
and the current condition of the container.
Resin / glass fabric multi-layer lamination gives the systems resistance to existing
and future cracking in a concrete substrate of up to 20/10ths of a mm.
Industrial building in contact with waste water, oil, grease, and other aggressive liquids’ waterproofing

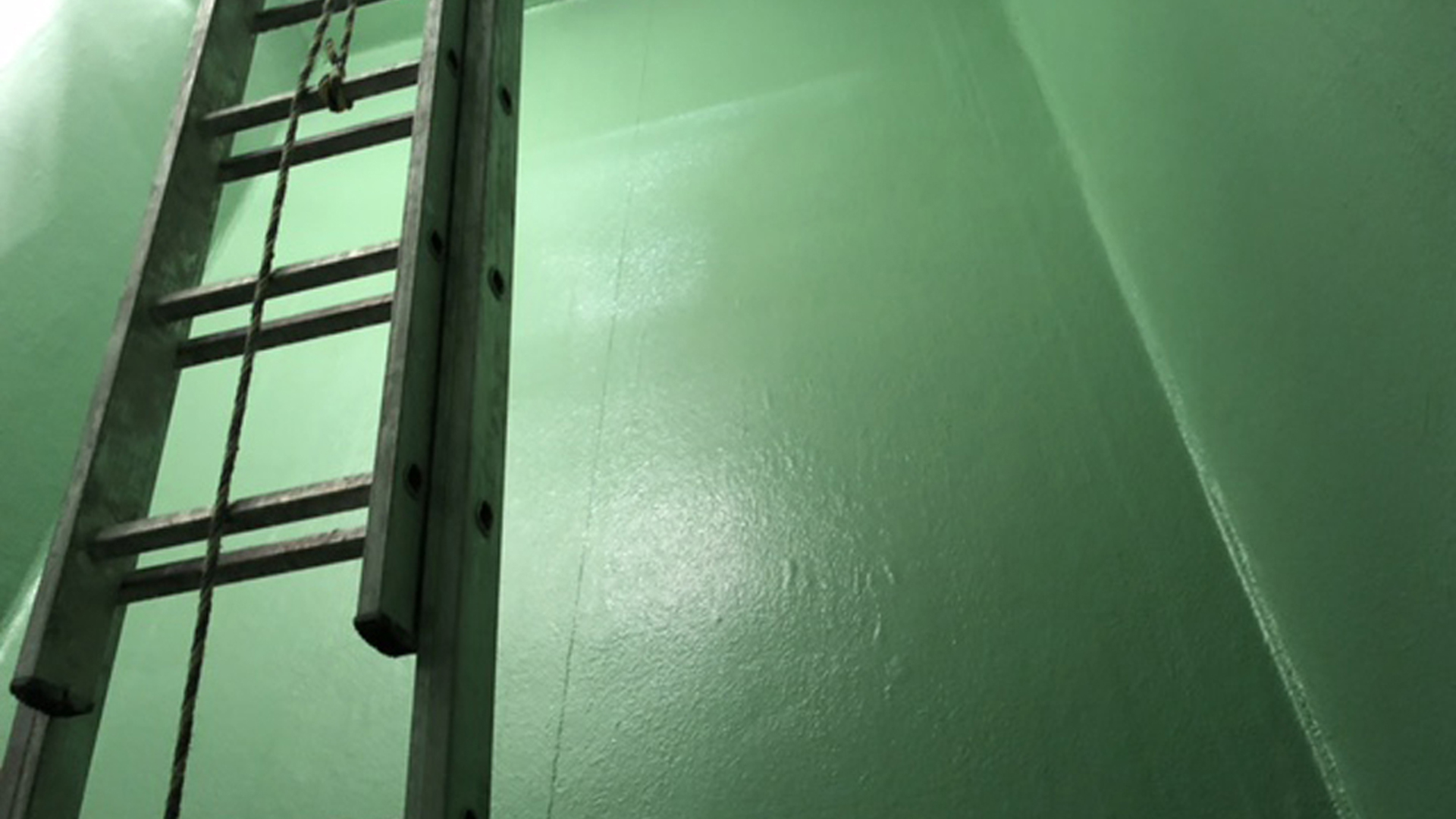

Several structures were built in this RATP maintenance station using TECHNOPERL® epoxy laminate coating reinforced with glass tissue for retention areas, pits, basins, storage areas in contact with wastewater or rainwater, oils and greases, or aggressive liquids waterproofing
Maintenance station for RATP trains Clichy (92), 2018

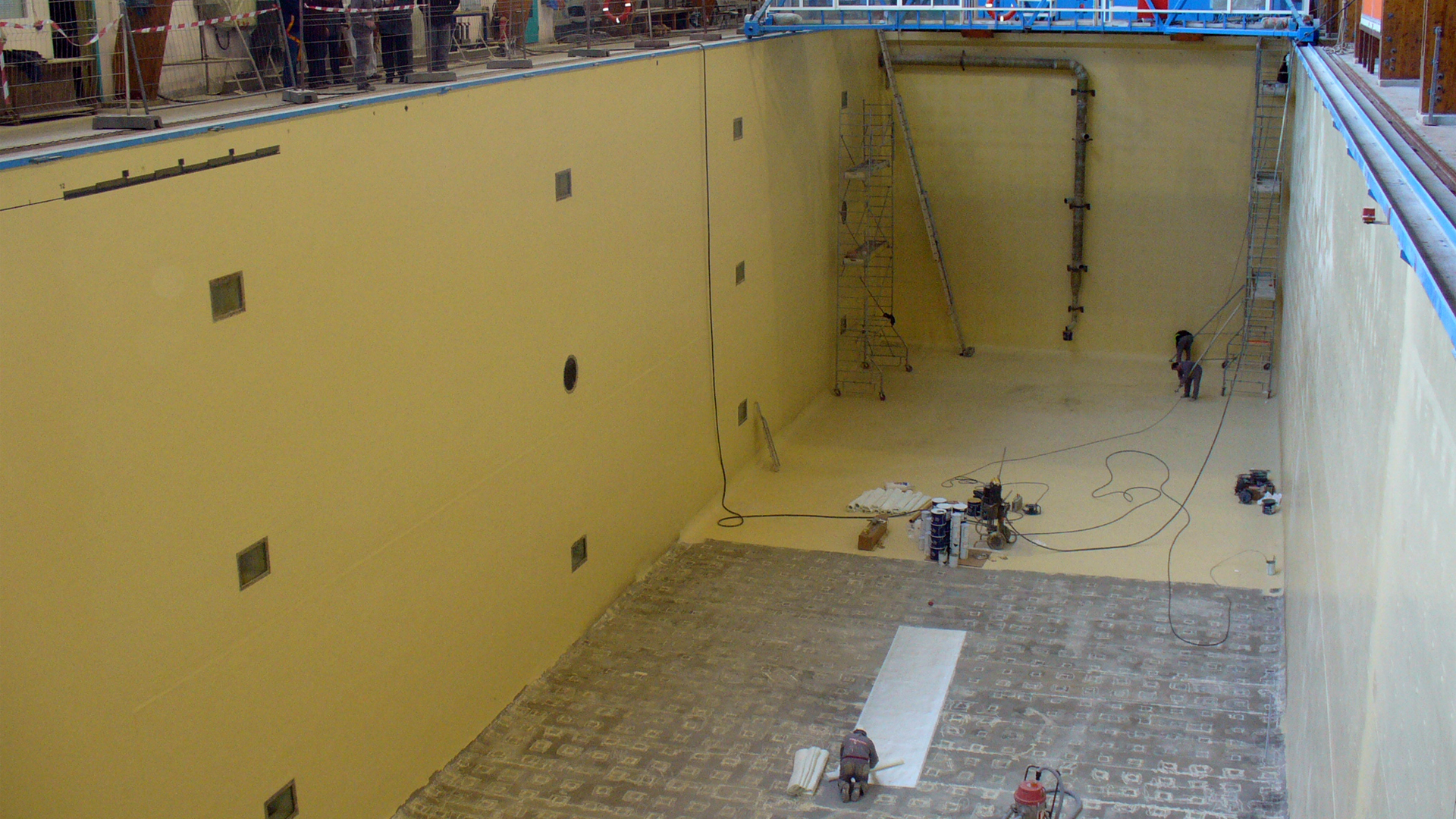

Salt water test tank waterproofing
TECHNOPERL® epoxy laminate coating reinforced with P80 glass tissue for salt water test tank waterproofing
IFREMER test tank Brest (29), 2006

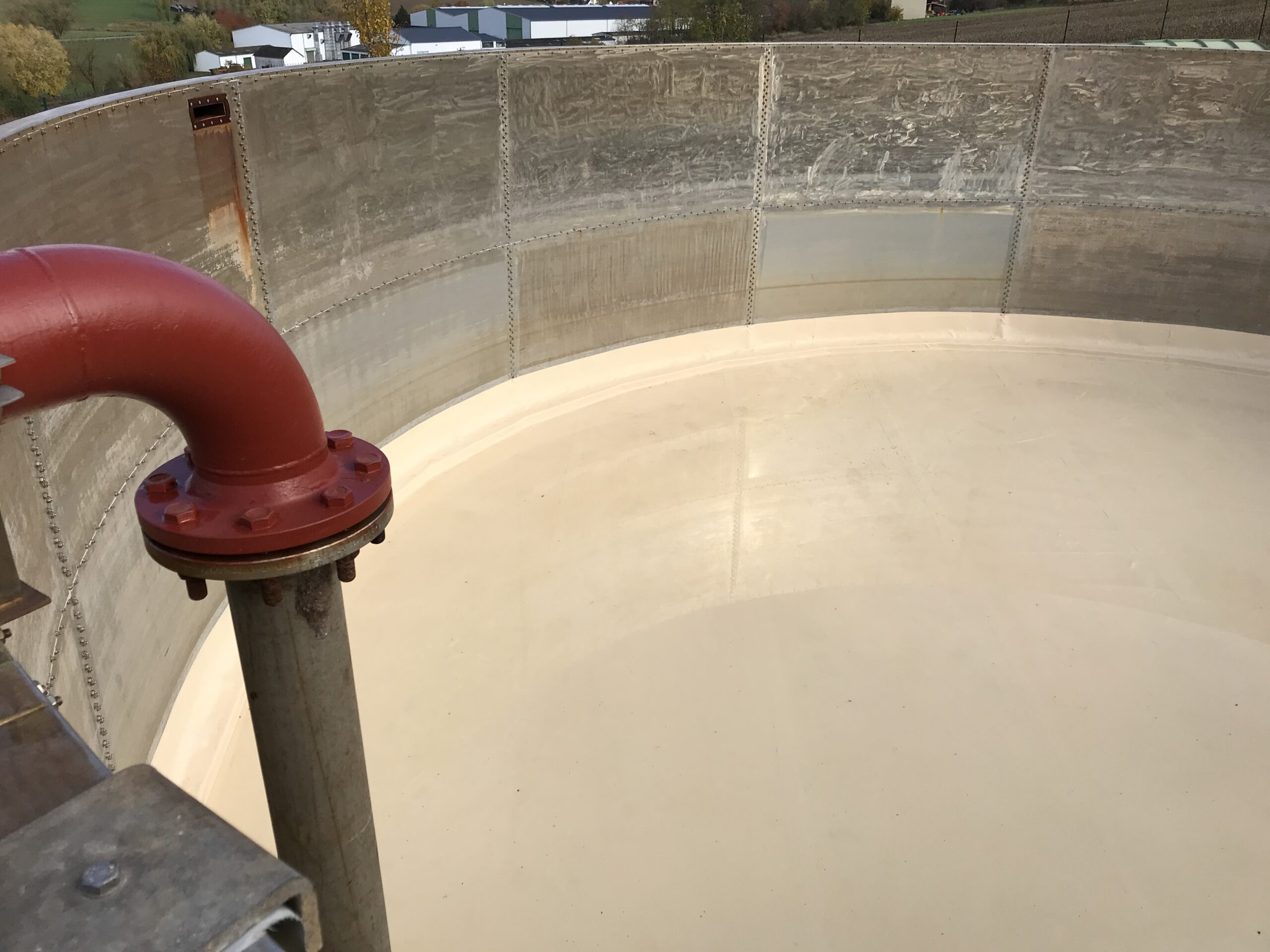

Brine tank concrete floor waterproofing
TECHNOPERL® + GELCOAT SV101 system
TECHNOPERL® epoxy laminate coating reinforced with P80 glass tissue with a GELCOAT SV101 epoxy novolac finish for brine tank concrete floor waterproofing
Geothermal power plant, Soultz-sous-Forêts (67), 2020
Ferric chloride retention tank and unloading area waterproofing
TECHNOPERL® + GELCOAT SV101 system
The concrete retention was waterproofed thanks to an epoxy laminate coating TECHNOPERL® reinforced with P45 glass tissue and an epoxy novolac finish GELCOAT SV101
The unloading area received the same coating but reinforced with P120 glass tissue compatible with heavy traffic
Unloading area and retention, Lestrem (62), 2021
Concrete buffer tank waterproofing
TECHNOPERL® + CHEMPERL® system
The epoxy laminate coating TECNOPERL® reinforced with P45 glass tissue and the vinylester finish CHEMPERL® allowed the 500 m² concrete buffer basin waterproofing
Food production plant, 2021

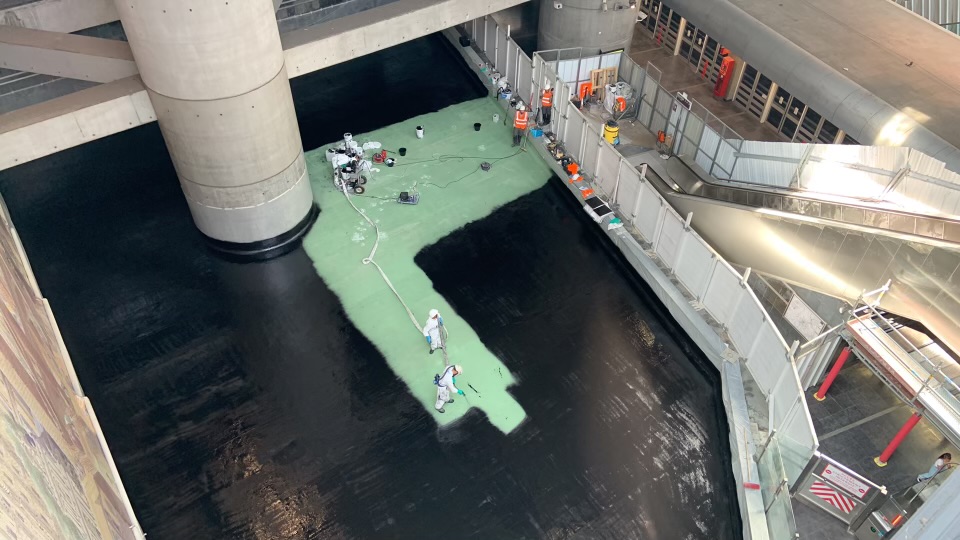

Waterproofing of a 1.000 m² basin containing rain water
TECHNOPERL® + LP100/512 system
The application of this coating was carried out after the removal of the existing coating and the reconstitution of the support by rendering with AR100 Render
This waterproofing system is composed of a TECHNOPERL® R epoxy laminate reinforced with P45 glass tissue and of a black coloured LP 100/512 epoxy finishing coat
The application of the LP 100/512 coating was done using an airless spray pump
Lille Europe Station (59), 2022
